Yaskawa AC Drives

A1000 AC DRIVE

Technical Specifications:

Product Range: 0.55 to 355 kW.
Output Frequency range: 0.01 to 400 Hz.
Input Voltage: 380-480 VAC, -15 % to + 10 %
Starting Torque: Upto 200 % for 60 Secs
Control Method: V/f Control, V/f Control with PG, Open Loop Vector Control,Closed Loop Vector Control with PG, Vector Control for PM, Advanced Open Loop Vector Control for PM, Closed Loop Vector Control for PM.

Special Features:

Braking Transistor Built In till 30 K.W.
Working Ambient Temperature: -10 to 50 deg C. without derating.
Last Ten Fault History for easy Troubleshooting.
Instant Setup of New drives using stored Backup.
Swing PWM function to decrease noise at low carrier frequencies.
USB Connectivity & Modbus RS485/422 onboard

Yaskawa AC Drives

V1000 AC DRIVE

Technical Specifications:

Product Range: 0.2 to 18.5 K.W.
Output Frequency range: 0.01 to 400 Hz.
Input Voltage: 380-480 VAC, -15 % to + 10 %
Starting Torque: Upto 150 % for 60 Secs
Control Method: V/F Control, Open Loop Current Vector Control and PM Open Loop Vector for use with IPM/SPM(Sine Wave PWM).

Special Features:

Braking Transistor Built In till thru all the ratings.
Working Ambient Temperature: -10 to 50 deg C. without derating.
Last Ten Fault History for easy Troubleshooting.
Instant Setup of New drives using stored Backup.
Swing PWM function to decrease noise at low carrier frequencies
USB Connectivity & Modbus RS485/422 onboard

Yaskawa AC Drives

J1000 AC DRIVE

Technical Specifications:

Product Range: 0.2 to 5.5 K.W.
Output Frequency range: 0.01 to 400 Hz.
Input Voltage:200---240 VAC/380-480 VAC, -15 % to + 10 %
Starting Torque: Upto 150 % for 60 Secs
Control Method: V/F Control

Special Features:

Braking Transistor Built In till thru all the ratings.
Working Ambient Temperature: -10 to 50 deg C. without derating.
Swing PWM function to decrease noise at low carrier frequencies.

Technical Specifications

Ratings: 0.5 to 150 HP, 240 VAC
0.5 to 500 HP, 480 VAC
Output frequency: 0.01 to 400 Hz
Input voltage: +10% / -15%, 3 phase, 240 or 480 VAC, phase insensitive
Starting torque: 150% at frequency;
1.0Hz (V/f), 0.5Hz (open loop vector), 0.0Hz (closed loop vector)

Special features

LCD keypad display: 5 lines x 16 characters, backlit, 7 languages, copy function
Simple programming: Quick start and modified parameter groups
Microprocessor logic: 32-bit
Memory type: Flash memory for easy updates, custom software applications, and non-volatile program retention
Motor auto-tuning: Static and rotational
Speed search: Bi-directional into rotating motor

Technical Specifications

Ratings: 0.5 to 150 HP, 240 VAC
0.5 to 500 HP, 480 VAC
Output frequency: 0.01 to 400 Hz
Input voltage: +10% / -15%, 3 phase, 240 or 480 VAC, phase insensitive
Starting torque: 150% at frequency;
1.0Hz (V/f), 0.5Hz (open loop vector), 0.0Hz (closed loop vector)

Special features

LCD keypad display: 5 lines x 16 characters, backlit, 7 languages, copy function
Simple programming: Quick start and modified parameter groups
Microprocessor logic: 32-bit
Memory type: Flash memory for easy updates, custom software applications, and non-volatile program retention
Motor auto-tuning: Static and rotational
Speed search: Bi-directional into rotating motor

Technical Specifications

Overload Capacity - 150% for 60 sec. (HD), 120% for 60 sec. (ND)
Output Frequency - 0~400 Hz
Control Methods - Open and Closed Loop Current Vector -Open and Closed Loop V/f
Speed Response-250 Hz: Closed Loop Vector; 10 Hz: Open Loop Vector

Special features

Full Regeneration
Low Input Distortion Across a Wide Load and Speed Range
Eco-Mode to Achieve Near Across-the-Line THD
High Efficiency Design Provides Extra Energy Savings as Compared to Other Low Harmonic Solutions
Embedded Modbus RTU Communications
Removable Terminal Block
0-400 Hz Output Frequency
120% Overload for 60 Seconds (ND)
150% Overload for 60 Seconds (HD)
Multi-language LCD Display with Copy function

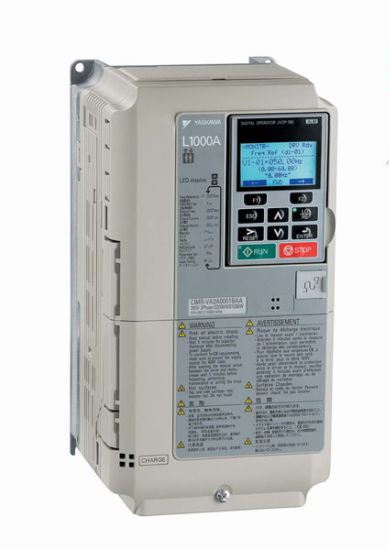

Technical Specifications

Overload Capacity - 150% Overload for 60 sec. (Heavy Duty)
Output Frequency - 0~120 HZ
Control Methods -Open Loop Current Vector Control, V/f Control, Flux Vector Control, PM Flux.- Vector Control
Keypad Operator - Standard multi-lingual, full-text remote LCD Copy function

Special features

Single drive for either IM or PM motor control
Peak current ratings of 200% or more based on NEC amps
Auto-tuning routines optimally match L1000A to IM/PM motors (coupled or uncoupled)
YASKAWA Quality – designed for more than 70,000 hours of maintenance-free operation
Designed for extreme quiet motor operation
Enhanced features for highest passenger comfort (i.e., torque ripple suppression)
Powerful keypad and I/O interface to simplify elevator controller integration
Easy serviceability and maintainability with lifetime monitors and removable terminals with parameter backup
Elevator terminology for ease of operation

Technical Specifications

Overload Capacity - 110% for 60 seconds, 175% instantaneous
Output Frequency - 0.01 to 240 Hz
Control Methods - V/Hz Control, - Open Loop Vector Control for Permanent Magnet motors
Motor Types - Squirrel Cage Induction Type - Interior Permanent Magnet (IPM)

Special features

Harmonic Mitigation:

Built-in 5% line impedance for input harmonic reduction.

Noise Filter:

On board EMI/RFI filter complies with IEC 61800-3 restricted distribution for first environment.

Serial Communications:

Embedded BACnet communications (BTL Certified), along with Modbus/Memobus, Metasys and Apogee FLN.

Ratings:

Plenum Rated (UL 1995). Seismic Rated (IBC 2006 - Certification 12/2011). Made with RoHS compliant materials.

Internal Real-Time Clock: Time and date stamping for events, along with timer controls for starting, stopping, and speed changes without the need for external controls.
