Servo Systems

For Example

The new autotuning algorithm allows the perfect set-up of a two axes in super high performance machine in less than two hours – compared to more than eight hours needed by other products in the market. New Performance

The major benefits of Sigma-5, such as precise and fast positioning, highest machine speed, vibration less motion, smooth running at lowest speed, make Sigma-5 ideal for machines in the fields of electronics, semiconductors, packaging, printing and machine tools. The new Sigma-5 generation will also be a perfect match for the injection molding and metal forming industries, where high throughput and point-to-point positioning are decisive factors.

• Short cycle time – high throughput
• Improved product quality
• Less machine wear
• Short initial set-up time
• Low lifecycle cost

Applications

• Printing
• Machine tools
• Injection molding & Plastic processing
• Metal forming industries
• Textile machines
• Electronics & semiconductors
• Special purpose machines

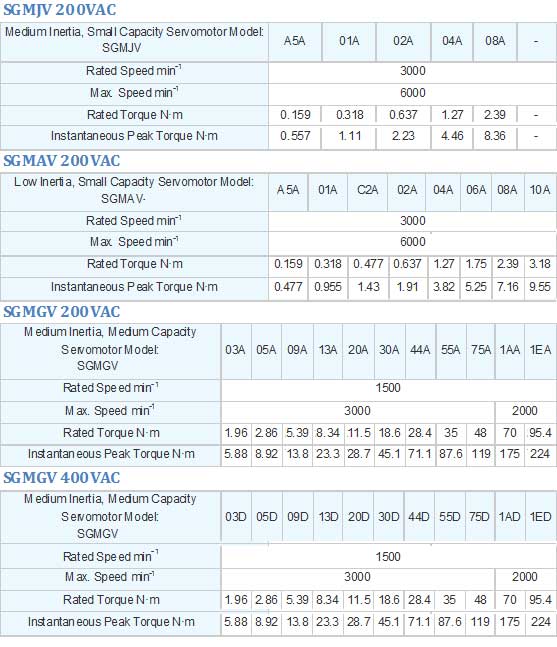

Small Capacity

• Improved motor constants have reduced both losses and heating.
• Peak torque has been boosted from 300% to 350%, contributing to shorter tact times.
• Moment of inertia has been doubled in the same motor, reducing the load inertia ratio and boosting gain for faster settling

Medium Capacity

Smaller package and about 20% lighter, but with the same inertia as the conventional model. A small encoder connector is applied.

• New coupling delivers typical 5G vibration resistance.
• New serial encoders with a resolution of 1,048,576 pulses.
• Injection molding & Plastic processing
• Number of parts was reduced by about 30%.
• Power loss down by 30%.

User-friendly software for fast and easy set-up

• Free Set-up software SigmaWin+
• The SigmaWin+ wiring check function checks your wiring in a single operation
• Simple parameter set-up with wizard-aided input
• Optimized autotuning function
• Automatic filter function to suppress vibrations
• Free servo motor selection program SigmaJunmaSize+

Versatile communication with machine controllers

• Embedded open fieldbus system MECHATROLINK
• Via several open and Ethernet based fieldbus systems
