Motion Controllers MP2000 Series

Custom-made Machine Controllers

The MP2300 is an all-in-one machine controller. It has three slots for other modules and a basic module whose standard functions include those of a CPU module, an SVB module, and an I/O module. The CPU can be used to control 48 axes (when two SVB-01 modules are mounted).

• Short cycle time – high throughput
• Improved product quality
• Less machine wear
• Short initial set-up time
• Low lifecycle cost

For Global Open Networks

Simply insert the optional modules in the slots to construct a global open network and expand I/O.Access to all controllers in the MP series from the Engineering PC connected to Ethernet and running MPE720.

Synchronous Sequence and Motion Processing

Achieves faster CPU processing and synchronized sequencing of motion control.

The MP2300 Machine Controller controls the machine’s motions in synchronization with high-speed scanning, which helps to reduce tact time. The motion control starts within 1 scan from the start signal. Also, the MP2300 can control different motions at the same time.

Maximizing the speed for arithmetic calculations is essential for high-speed motion control. The high-speed CPU processing of the MP2300 is capable of coping with large-capacity programs. Command Execution Time is 0.2ms/1,000 steps (1.4 times faster than MP930) The Program capacity of ladder program has 4k steps when the motion program has 1200k characters. (120k steps max. only with ladder program)

Easy Set-up

No need to input settings because the MP2300 automatically recognizes the connected optional modules and servo drivers. The MP2300 Machine Controller also automatically recognizes the configurations of the devices connected to the MECHATROLINK network and sets the required definitions to default values. To run a motor effort is reduced to installation and wiring.

Transmission Speed 100 Mbps with Mechatrolink-III

With high-speed network communications to servo drives, changing gains and switching the controls for speed, torque, and position can be accomplished online while the machine is running, so you can flexibly control the machine motions.

With ladder works and application conversion function (Engineering Tool MPE720)

An easy-to-use Windows-based editing technique for programming. Ladder programs of previous models like the MP930 can be easily converted for use with the MP2300. Total support for all stages of programming is also available.

Flexible and Adaptable

Various types of systems, such as analogue or networked systems, can be constructed by combining optional modules. The distributed installation of I/O, the use of a variety of motor drives, and communication to other brands of controllers are possible.

I/O Modules for MECHATROLINK-II & MECHATROLINK-III

64-point I/O module for distributed I/Os, counter module, and pulse output module are available.

Optional Communication Modules

Used to construct an open network. Modules with various types of interfaces are available.

Optional Local I/O Modules

Provides digital or analog I/O interface. 5 types of digital I/O modules, 2 type of analog I/O modules, and 1 type of counter module are available.

Motion Control Modules

Connects to the SERVOPACK for motion control. Various MECHATROLINK slaves can be connected to the SVB-01 module.

I/O Modules for MECHATROLINK-II & MECHATROLINK-III

64-point I/O module for distributed I/Os, counter module, and pulse output module are available.

Optional Communication Modules

Used to construct an open network. Modules with various types of interfaces are available.

Optional Local I/O Modules

Provides digital or analog I/O interface. 5 types of digital I/O modules, 2 type of analog I/O modules, and 1 type of counter module are available.

Motion Control Modules

Connects to the SERVOPACK for motion control. Various MECHATROLINK slaves can be connected to the SVB-01 module.

Improved ease of use

Instead of opening an adjustment screen for each axis, adjustments of multi axes can be performed on just the one screen, dramatically reducing the setup time.

Improved maintainability

The CPU unit itself is equipped with a USB port for data storage purposes as a standard feature. This makes easy work of system version updating and backup, as well as the import and export of large volumes of data. Moreover, the data logging function makes it possible to save the operational statuses of a system in the internal RAM or a USB memory. The logging data can then be easily accessed from a host system in a remote location. This results in the ability to obtain large volumes of data, including system operational statuses, and significantly improves traceability on the production floor.

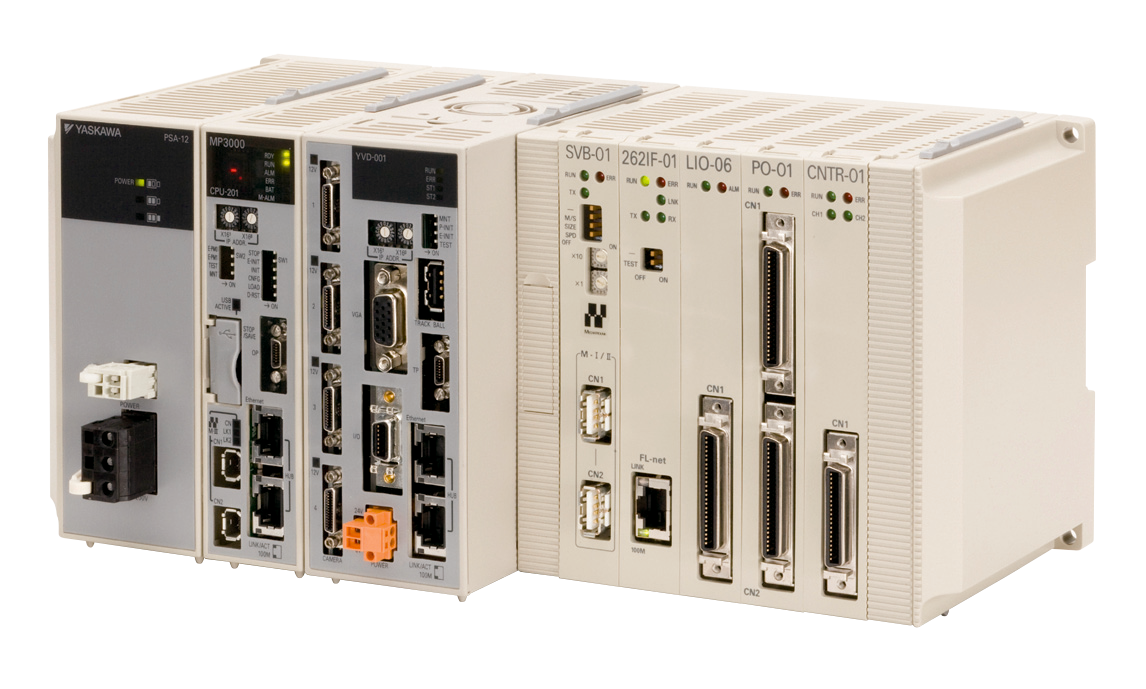

Complete compatibility with the MP2000 series

Compatibility means that customers can use the many different optional modules that have been available for use with the MP2000 series. It also means that they can directly use the program applications of the MP2000 series without making any changes. As a result, the transition from the MP2000 to the MP3300 is smooth, enabling improvements in the performance and functions of the customers' systems to easily be achieved.
